CN100 Datasheet - CDIL

CN100 PNP Silicon Planar Transistor

SYMBOL VALUE V Collector -Base Voltage 60 CBO VCEO Collector -Emitter Voltage 50 VEBO Emitter Base Voltage 7 IC Collector Current Continuous 1 PTA Power Dissipation @Ta=25ºC 800 6 Derate Above 25ºC Tj, Tstg Operating and Storage Junction -55 to +150 Temperature Range ELECTRICAL CHARACTERISTICS (Ta=2.

CN100 Datasheet (56.01 KB)

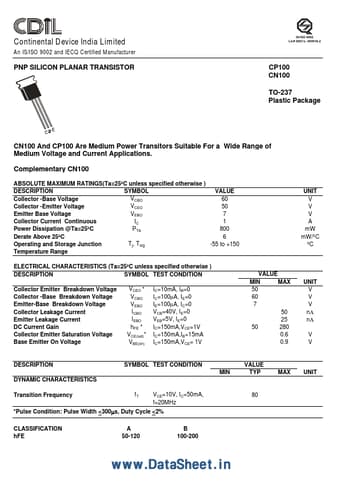

Preview of CN100 PDF

Datasheet Details

Part number:

CN100

Manufacturer:

CDIL

File Size:

56.01 KB

Description:

Pnp silicon planar transistor.
