CE2752

mixed signal CMOS monolithic audio digital to analog converter

CE2752 Features

* Stereo Audio DAC. - 100 dB SNR (A Weighted). - - 88dB THD + N Ratio (A Weighted). - 32K - 192 KHz. Sampling Rates. - I2S and Left Justified Digital Input Formats. - On -chip Reconstruction Filters.

* 3.3 Power Supply. Applications

* Digital Surround Sound For Hom

CE2752 General Description

The CE2752 is a mixed signal CMOS monolithic audio digital to analog converter. It contains dual multi-bit sigma delta DAC. The system consists of 128-time interpolation filters, 3th order multi-bit Σ∆ modulators, switch capacitors and analog reconstruction filters. The multi-bit Σ∆ converter offers.

CE2752 Datasheet (277.66 KB)

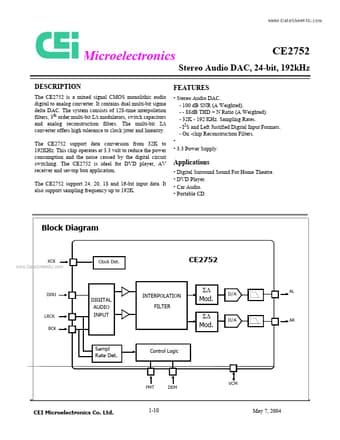

CE2752 Datasheet Preview — Preview of CE2752 PDF

Datasheet Details

Part number:

CE2752

Manufacturer:

CEI Microelectronics

File Size:

277.66 KB

Description:

Mixed signal cmos monolithic audio digital to analog converter.
