CE2A3Q - on-chip resistor NPN silicon epitaxial transistor For mid-speed switching

CE2A3Q Description

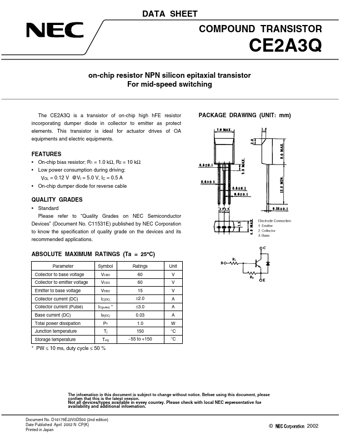

DATA SHEET COMPOUND TRANSISTOR CE2A3Q on-chip resistor NPN silicon epitaxial transistor For mid-speed switching The CE2A3Q is a transistor of on-ch.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

CE2A3Q Features

* On-chip bias resistor: R1 = 1.0 kΩ, R2 = 10 kΩ
* Low power consumption during driving: VOL = 0.12 V @VI = 5.0 V, IC = 0.5 A
* On-chip dumper diode for reverse cable QUALITY GRADES
* Standard Please refer to “Quality Grades on NEC Semiconductor Devices” (Document No

CE2A3Q Applications

* ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current (DC) Collector current (Pulse) Base current (DC) Total power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC(DC) IC(pulse)

📥 Download Datasheet
