CE2746 Datasheet - ETC

CE2746 6-Channel Audio DAC 24-bit 192kHz

The CE2746 is a mixed signal CMOS monolithic audio digital to analog converter. It contains six 1-bit sigma delta DAC. The system consists of 128-time interpolation filters, 4th order Σ∆ modulators, switch capacitors and analog reconstruction filters. The one bit Σ∆ converter offers superior differe.

CE2746 Features

* Six Channel Audio DAC. - 104 dB SNR (A Weighted). - -94 dB THD + N Ratio (A Weighted). - 8K - 192 KHz. Sampling Rates. - Independent Digital Volume Control. - I2S, Left and Right Justified Digital Input Formats. - On -chip Reconstruction Filters.

* 3.3 -volt Digital Interface.

CE2746_ETC.pdf

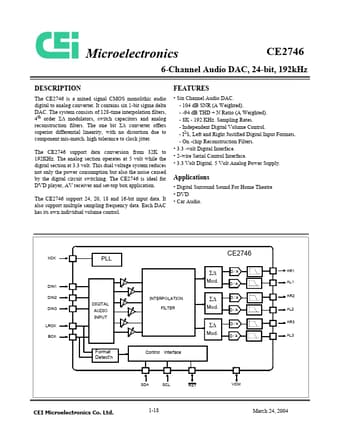

Preview of CE2746 PDF
CE2746 Datasheet Preview Page 2 CE2746 Datasheet Preview Page 3

Datasheet Details

Part number:

CE2746

Manufacturer:

ETC

File Size:

342.46 KB

Description:

6-channel audio dac 24-bit 192khz.
