CE2766 - 6-Channe Audio DAC

CE2766 Description

Microelectronics .
The CE2766 is a mixed signal CMOS monolithic audio digital to analog converter.

CE2766 Features

* Six Channel Audio DAC. - 101 dB SNR (A Weighted). - -86 dB THD + N Ratio (A Weighted). - 32K - 192 KHz. Sampling Rates. - Independent Digital Volume Control. - I2S, Left and Right Justified Digital Input Formats. - On -chip Reconstruction Filters.
* 2-wire Serial Control Interface.

CE2766 Applications

* Digital Surround Sound For Home Theatre
* DVD
* Car Audio. XCK PLL CE2766 Σ∆ Mod. INTERPOLATION FILTER D/A D/A D/A D/A D/A D/A AR1 AL1 AR2 AL2 AR3 AL3 DIN1 DIN2 DIN3 80 80 77 DIGITAL AUDIO INPUT Σ∆ Mod. Σ∆ Mod. LRCK BCK 77 78 Clock Rate Detect'n Control Interfac

📥 Download Datasheet

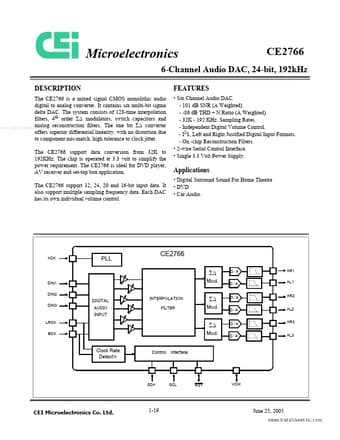

Preview of CE2766 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CE2766
Manufacturer
CEI
File Size
495.49 KB
Datasheet
CE2766_CEI.pdf
Description
6-Channe Audio DAC
