NE02107, NE021, NPN SILICON HIGH FREQUENCY TRANSISTOR

NEC's NPN SILICON HIGH FREQUENCY TRANSISTOR .
NEC's NE021 series of NPN silicon transistors provides economical solutions to wide ranges of amplifier and oscillator problems.

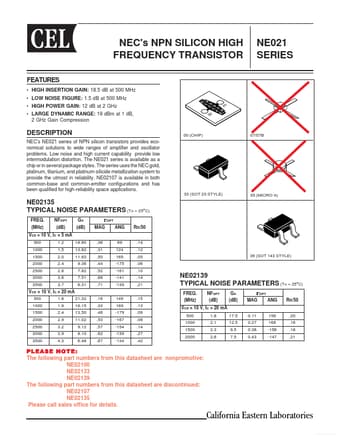

datasheet Preview Page 1 from Datasheet4u.com

NE021-CEL.pdf

NE02107 Datasheet Preview — This datasheet PDF includes multiple part numbers: NE02107, NE021. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NE02107, NE021

Manufacturer:

CEL

File Size:

204.13 KB

Description:

NPN SILICON HIGH FREQUENCY TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: NE02107, NE021.
Please refer to the document for exact specifications by model.

Features

* HIGH INSERTION GAIN: 18.5 dB at 500 MHz
* LOW NOISE FIGURE: 1.5 dB at 500 MHz
* HIGH POWER GAIN: 12 dB at 2 GHz

Applications

* 00 (CHIP) 07/07B 33 (SOT 23 STYLE) 35 (MICRO-X) NE02135 TYPICAL NOISE PARAMETERS (TA = 25°C) FREQ. (MHz) NFOPT (dB) GA (dB) ΓOPT MAG ANG Rn/50 VCE = 10 V, IC = 5 mA 500 1000 1500 2000 2500 3000 3500 500 1000 1500 2000 2500 3000 3500 1.2 1.5 2.0 2.4 2.6 3.6 3.7 1.8 1.9 2.4 2.9 3.2 3.9 4.3 18.6
