NX7663JB-BC - InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE

Datasheet Summary

Description

The NX7663JB-BC is a 1 625 nm Multiple Quantum Well (MQW) structure pulsed laser diode DIP module with single mode fiber and internal thermoelectric cooler.

It is designed for light sources of optical measurement equipment (OTDR).

Features

  • High output power.
  • Long wavelength Pf = 120 mW MIN. @ IFP = 1 000 mA, PW = 10 µs, Duty = 1% λ C = 1 625 nm.
  • Internal thermoelectric cooler, thermistor.
  • Hermetically sealed 14-pin Dual-In-Line Package.
  • Single mode fiber pigtail.

📥 Download Datasheet

Datasheet preview – NX7663JB-BC

Datasheet Details

Part number NX7663JB-BC
Manufacturer CEL
File Size 973.72 KB
Description InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE
Datasheet download datasheet NX7663JB-BC Datasheet
Additional preview pages of the NX7663JB-BC datasheet.

📁 Similar Datasheet

Other Datasheets by CEL

Full PDF Text Transcription

Click to expand full text

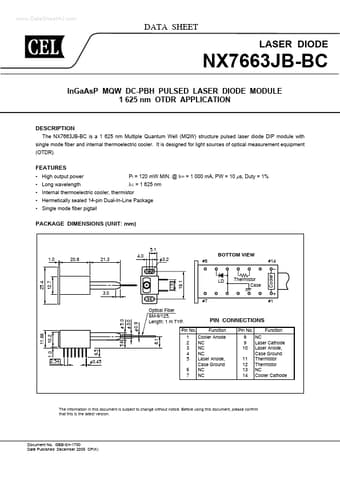

www.DataSheet4U.com DATA SHEET LASER DIODE NX7663JB-BC InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 625 nm OTDR APPLICATION DESCRIPTION The NX7663JB-BC is a 1 625 nm Multiple Quantum Well (MQW) structure pulsed laser diode DIP module with single mode fiber and internal thermoelectric cooler. It is designed for light sources of optical measurement equipment (OTDR). FEATURES • High output power • Long wavelength Pf = 120 mW MIN. @ IFP = 1 000 mA, PW = 10 µs, Duty = 1% λ C = 1 625 nm • Internal thermoelectric cooler, thermistor • Hermetically sealed 14-pin Dual-In-Line Package • Single mode fiber pigtail PACKAGE DIMENSIONS (UNIT: mm) 1.0 20.8 21.3 4.0 5.1 3.2 #8 BOTTOM VIEW #14 – 25.4 12.7 3.0 #7 Optical Fiber SM-9/125, Length: 1 m TYP. Pin No. 1 2 3 4 5 6 7 19.1 7.
