NX8300CE-CC, NX8300BE-CC, InGaAsP MQW DFB LASER DIODE

www.DataSheet4U.com NEC's 1310 nm InGaAsP MQW DFB LASER DIODE NX8300BE-CC IN COAXIAL PACKAGE NX8300CE-CC FOR 2.5 Gb/s APPLICATION .
NEC's NX8300BE-CC and NX8300CE-CC are 1310 nm Distributed Feed-Back (DFB) laser diode coaxial modules with an internal optical isolator.

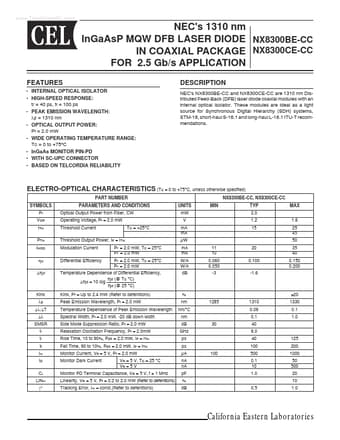

datasheet Preview Page 1 from Datasheet4u.com

NX8300BE-CC_CEL.pdf

NX8300CE-CC Datasheet Preview — This datasheet PDF includes multiple part numbers: NX8300CE-CC, NX8300BE-CC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NX8300CE-CC, NX8300BE-CC

Manufacturer:

CEL

File Size:

151.73 KB

Description:

InGaAsP MQW DFB LASER DIODE

Note:

This datasheet PDF includes multiple part numbers: NX8300CE-CC, NX8300BE-CC.
Please refer to the document for exact specifications by model.

Features

* INTERNAL OPTICAL ISOLATOR
* HIGH-SPEED RESPONSE: tr = 40 ps, tf = 100 ps
* PEAK EMISSION WAVELENGTH: λp = 1310 nm
* OPTICAL OUTPUT POWER: Pf = 2.0 mW
* WIDE OPERATING TEMPERATURE RANGE: TC = 0 to +75°C
* InGaAs MONITOR PIN-PD
* WITH SC-UPC CO

Applications

* These NEC products are not intended for use in life support devices, appliances, or systems where the malfunction of these products can reasonably be expected to result in personal injury. The customers of CEL using or selling these products for use in such applications do so at their own risk and a
