NX8501 - LASER DIODE

NEC

📥 Download Datasheet

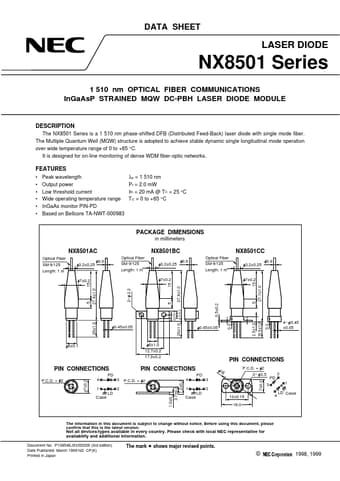

NX8501 Datasheet Preview — Preview of NX8501 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NX8501
Manufacturer	NEC
File Size	97.38 KB
Description	LASER DIODE
Datasheet	NX8501_NEC.pdf

NX8501 Product details

Description

The NX8501 Series is a 1 510 nm phase-shifted DFB (Distributed Feed-Back) laser diode with single mode fiber.

Features

Peak wavelength Output power Low threshold current Wide operating temperature range InGaAs monitor PIN-PD Based on Bellcore TA-NWT-000983 λp = 1 510 nm Pf = 2.0 mW Ith = 20 mA @ TC = 25 °C T C = 0 to +65 °C.
