NX8504CE-CC, NX8504BE-CC, InGaAsP MQW DFB LASER DIODE

www.DataSheet4U.com NEC's 1550 nm InGaAsP MQW DFB NX8504BE-CC LASER DIODE IN COAXIAL PACKAGE NX8504CE-CC for 622 Mb/s APPLICATION .
NEC's NX8504BE-CC and NX8504CE-CC are 1550 nm Distributed Feed-Back (DFB) laser diode coaxial modules with optical isolator.

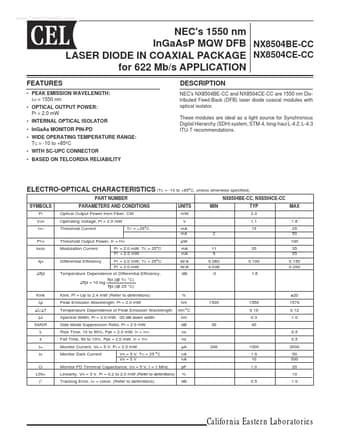

datasheet Preview Page 1 from Datasheet4u.com

NX8504BE-CC_CEL.pdf

NX8504CE-CC Datasheet Preview — This datasheet PDF includes multiple part numbers: NX8504CE-CC, NX8504BE-CC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NX8504CE-CC, NX8504BE-CC

Manufacturer:

CEL

File Size:

137.68 KB

Description:

InGaAsP MQW DFB LASER DIODE

Note:

This datasheet PDF includes multiple part numbers: NX8504CE-CC, NX8504BE-CC.
Please refer to the document for exact specifications by model.

Features

* PEAK EMISSION WAVELENGTH: λP = 1550 nm
* OPTICAL OUTPUT POWER: Pf = 2.0 mW
* INTERNAL OPTICAL ISOLATOR
* InGaAs MONITOR PIN-PD
* WIDE OPERATING TEMPERATURE RANGE: TC = -10 to +85°C
* WITH SC-UPC CONNECTOR
* BASED ON TELCORDIA RELIABILITY DES

Applications

* These NEC products are not intended for use in life support devices, appliances, or systems where the malfunction of these products can reasonably be expected to result in personal injury. The customers of CEL using or selling these products for use in such applications do so at their own risk and a
