NX8503BG-CC Datasheet, Diode, NEC

NX8503BG-CC Features

  • Diode
  • PEAK EMISSION WAVELENGTH: λP = 1550 nm
  • OPTICAL OUTPUT POWER: Pf = 2.0 mW
  • LOW THRESHOLD CURRENT: ITH = 15 mA @ TC = 25°C
  • InGaAs MONITOR PIN-PD

PDF File Details

Part number:

NX8503BG-CC

Manufacturer:

NEC

File Size:

98.62kb

Download:

📄 Datasheet

Description:

Necs 1550 nm ingaasp mqw dfb laser diode. NEC's NX8503BG-CC and NX8503CG-CC are 1550 nm Coaxial Module DFB (Distributed Feed-Back) laser diode with single mode fiber. Multiple

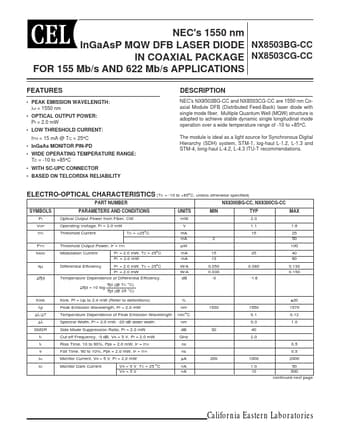

Datasheet Preview: NX8503BG-CC 📥 Download PDF (98.62kb)
Page 2 of NX8503BG-CC Page 3 of NX8503BG-CC

NX8503BG-CC Application

  • Applications FEATURES
  • PEAK EMISSION WAVELENGTH: λP = 1550 nm
  • OPTICAL OUTPUT POWER: Pf = 2.0 mW
  • LOW THRESHOLD CURRENT:
