NX8303CG-CC, NX8303BG-CC InGaAsP MQW DFB LASER DIODE

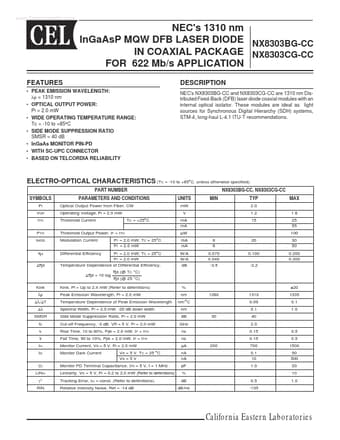

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com NEC's 1310 nm InGaAsP MQW DFB LASER DIODE NX8303BG-CC IN COAXIAL PACKAGE NX8303CG-CC FOR 622 Mb/s APPLICATION .
NEC's NX8303BG-CC and NX8303CG-CC are 1310 nm Distributed Feed-Back (DFB) laser diode coaxial modules with an internal optical isolator.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NX8303CG-CC, NX8303BG-CC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NX8303CG-CC, NX8303BG-CC
Manufacturer
CEL
File Size
124.45 KB
Datasheet
NX8303BG-CC_CEL.pdf
Description
InGaAsP MQW DFB LASER DIODE
Note
This datasheet PDF includes multiple part numbers: NX8303CG-CC, NX8303BG-CC.
Please refer to the document for exact specifications by model.

Features

* PEAK EMISSION WAVELENGTH: λp = 1310 nm
* OPTICAL OUTPUT POWER: Pf = 2.0 mW
* WIDE OPERATING TEMPERATURE RANGE: Tc = -10 to +85°C
* SIDE MODE SUPPRESSION RATIO SMSR = 40 dB
* InGaAs MONITOR PIN-PD
* WITH SC-UPC CONNECTOR
* BASED ON TELCORDIA R

Applications

* These NEC products are not intended for use in life support devices, appliances, or systems where the malfunction of these products can reasonably be expected to result in personal injury. The customers of CEL using or selling these products for use in such applications do so at their own risk and a
