CED21A3 - N-Channel MOSFET

CET

📥 Download Datasheet

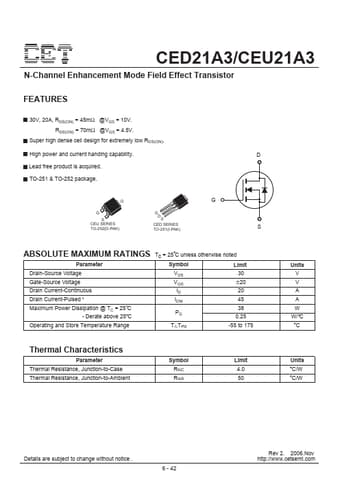

CED21A3 Datasheet Preview — Preview of CED21A3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CED21A3
Manufacturer	CET
File Size	327.49 KB
Description	N-Channel MOSFET
Datasheet	CED21A3-CET.pdf

CED21A3 Product details

Features

30V, 20A, RDS(ON) = 45mΩ @VGS = 10V. RDS(ON) = 70mΩ @VGS = 4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead free product is acquired. TO-251 & TO-252 package. D D G S CEU SERIES TO-252(D-PAK) G DS CED SERIES TO-251(I-PAK) G S.
