CED20P06 P-Channel MOSFET

CED20P06 Description

CED20P06/CEU20P06 P-Channel Enhancement Mode Field Effect Transistor .

CED20P06 Features

* -60V, -13A, RDS(ON) = 105mΩ @VGS = -10V. RDS(ON) = 150mΩ @VGS = -4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead free product is acquired. TO-251 & TO-252 package. D D G S CEU SERIES TO-252(D-PAK) G D G S CED SERIES TO-251(I-PAK) S AB

📥 Download Datasheet

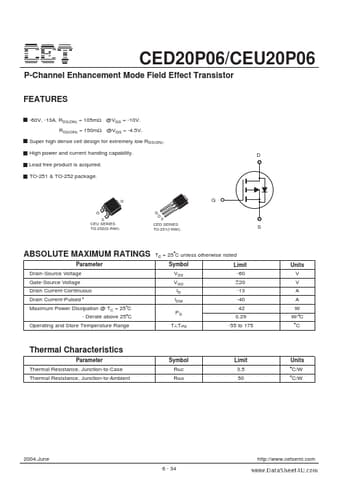

Preview of CED20P06 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CED20P06
Manufacturer
CET
File Size
139.69 KB
Datasheet
CED20P06_CET.pdf
Description
P-Channel MOSFET
