CED20N06 - N-Channel MOSFET

CET

📥 Download Datasheet

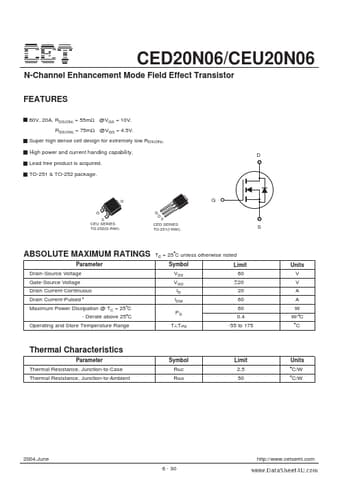

CED20N06 Datasheet Preview — Preview of CED20N06 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CED20N06
Manufacturer	CET
File Size	124.28 KB
Description	N-Channel MOSFET
Datasheet	CED20N06_CET.pdf

CED20N06 Product details

Features

60V, 20A, RDS(ON) = 55mΩ @VGS = 10V. RDS(ON) = 75mΩ @VGS = 4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead free product is acquired. TO-251 & TO-252 package. D D G S CEU SERIES TO-252(D-PAK) G D G S CED SERIES TO-251(I-PAK) S.
