CED21A2 N-Channel MOSFET

CED21A2 Description

CED21A2/CEU21A2 N-Channel Enhancement Mode Field Effect Transistor .

CED21A2 Features

* 20V, 20A, RDS(ON) = 40mΩ @VGS = 4.5V. RDS(ON) = 70mΩ @VGS = 2.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead free product is acquired. TO-251 & TO-252 package. D D G S CEU SERIES TO-252(D-PAK) G D G S CED SERIES TO-251(I-PAK) S ABSOLUT

📥 Download Datasheet

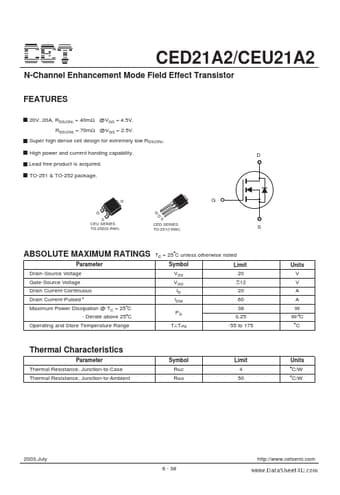

Preview of CED21A2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CED21A2
Manufacturer
CET
File Size
149.23 KB
Datasheet
CED21A2_CET.pdf
Description
N-Channel MOSFET
