XGZP6818A - Calibrated Pressure Sensor

Datasheet Summary

Features

  • Wide Ranges: 0kPa～100kPa…2500kPa(show in Pressure Range Example).
  • Optional 5V or 3.3V Power Supply.
  • Absolute Pressure Type.
  • For Non-corrosive Gas or Air.
  • Calibrated Amplified Analog Signal(Refer to XGZP6818D for I2C interface).
  • Temp. Compensated: 0℃～+60℃(32℉～+140℉).
  • Low Cost for wide.

📥 Download Datasheet

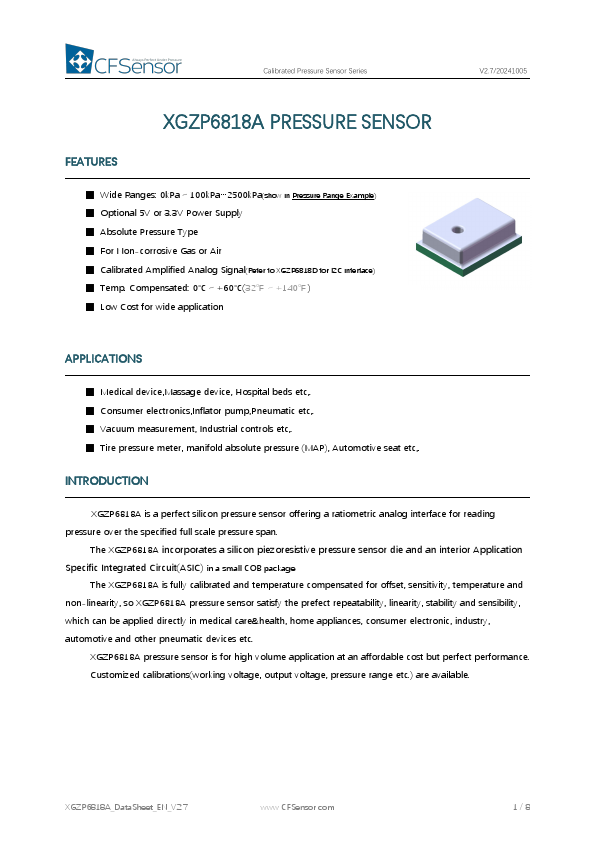

Datasheet preview – XGZP6818A

Datasheet Details

Part number XGZP6818A
Manufacturer CFSensor
File Size 503.12 KB
Description Calibrated Pressure Sensor
Datasheet download datasheet XGZP6818A Datasheet

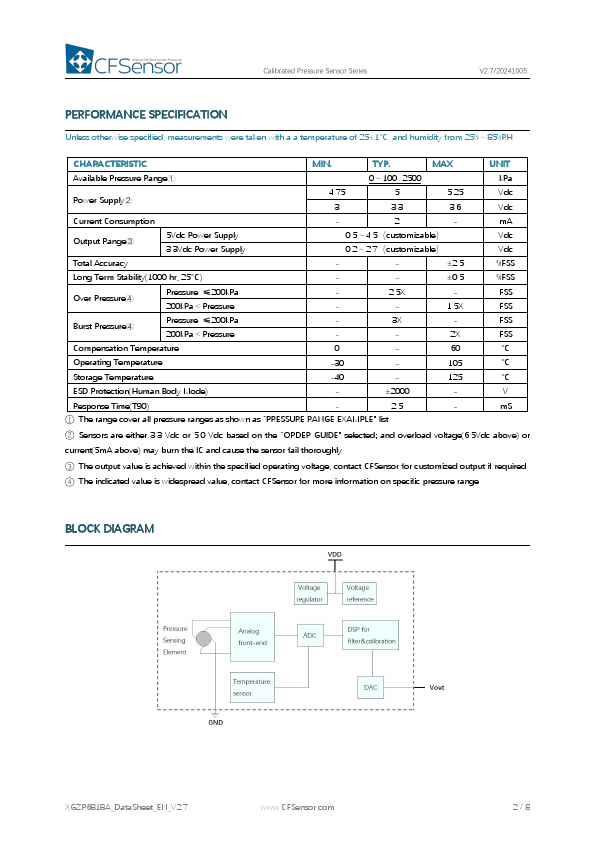

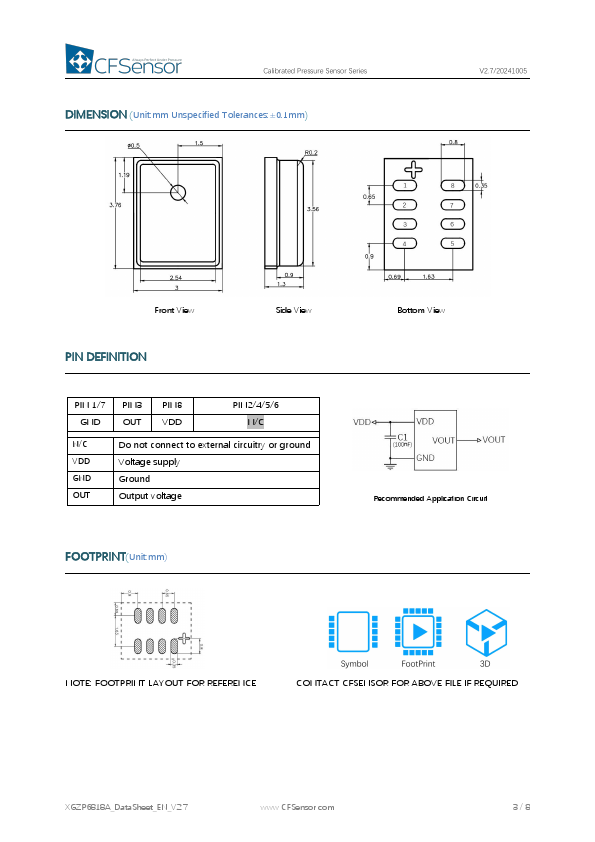

Additional preview pages of the XGZP6818A datasheet.

📁 Similar Datasheet

Other Datasheets by CFSensor

Full PDF Text Transcription

Click to expand full text
Calibrated Pressure Sensor Series XGZP6818A PRESSURE SENSOR FEATURES ■ Wide Ranges: 0kPa～100kPa…2500kPa(show in Pressure Range Example) ■ Optional 5V or 3.3V Power Supply ■ Absolute Pressure Type ■ For Non-corrosive Gas or Air ■ Calibrated Amplified Analog Signal(Refer to XGZP6818D for I2C interface) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Low Cost for wide application V2.7/20241005 APPLICATIONS ■ Medical device,Massage device, Hospital beds etc,. ■ Consumer electronics,Inflator pump,Pneumatic etc,. ■ Vacuum measurement, Industrial controls etc,. ■ Tire pressure meter, manifold absolute pressure (MAP), Automotive seat etc,.
