Calibrated Pressure Sensor Series
V1.0/202209

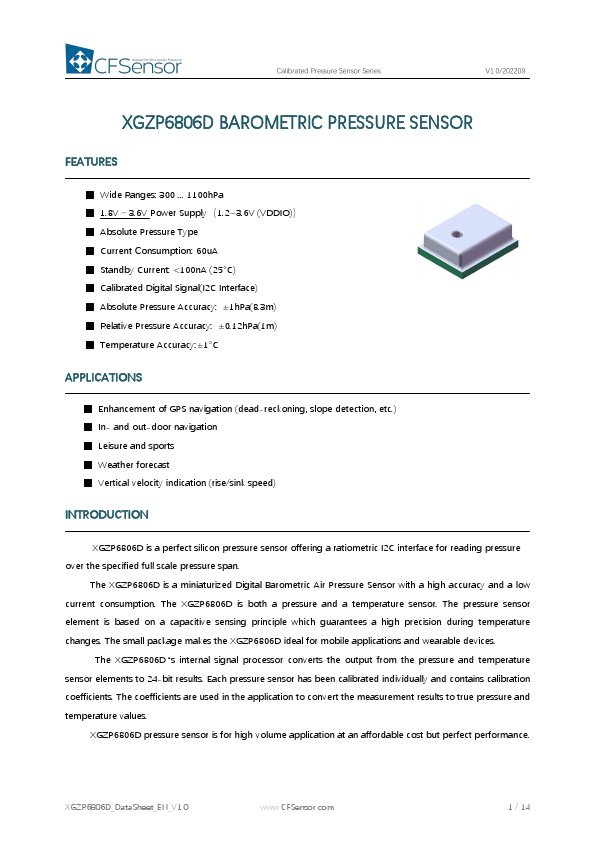

XGZP6806D BAROMETRIC PRESSURE SENSOR
FEATURES
■ Wide Ranges: 300 ... 1100hPa ■ 1.8V～3.6V Power Supply（1.2~3.6V (VDDIO)） ■ Absolute Pressure Type
■ Current Consumption: 60uA
■ Standby Current: <100nA (25°C) ■ Calibrated Digital Signal(I2C Interface) ■ Absolute Pressure Accuracy: ±1hPa(8.3m) ■ Relative Pressure Accuracy: ±0.12hPa(1m) ■ Temperature Accuracy:±1°C
APPLICATIONS
■ Enhancement of GPS navigation (dead-reckoning, slope detection, etc.) ■ In- and out-door navigation ■ Leisure and sports ■ Weather forecast ■ Vertical velocity indication (rise/sink speed)
INTRODUCTION
XGZP6806D is a perfect silicon pressure sensor offering a ratiometric I2C interface for reading pressure over the specified full scale pressure span.
