XGZP6847 - Pressure Sensor

Datasheet Summary

Features

Ranges: -100～7kPaG…700kPaG(-15～1PSI…105PSIG).
MEMS Technology,Solid-state reliability.
Low cost for high volume.

CFSensor

📥 Download Datasheet

Datasheet Details

Part number	XGZP6847
Manufacturer	CFSensor
File Size	0.96 MB
Description	Pressure Sensor
Datasheet	XGZP6847 Datasheet

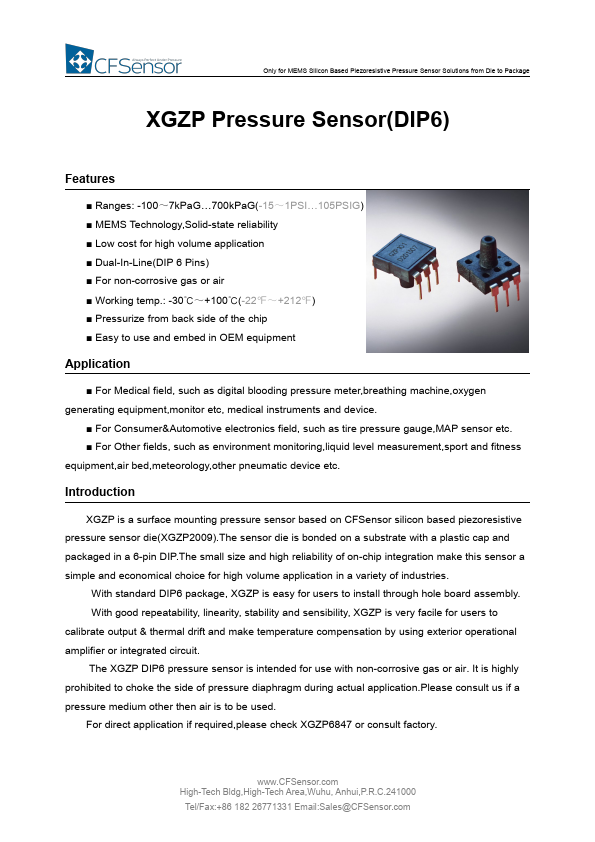

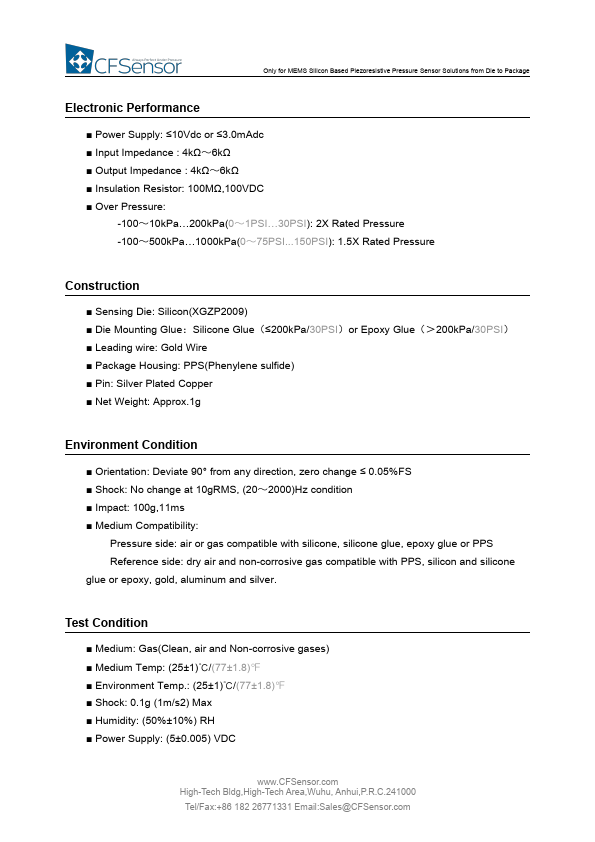

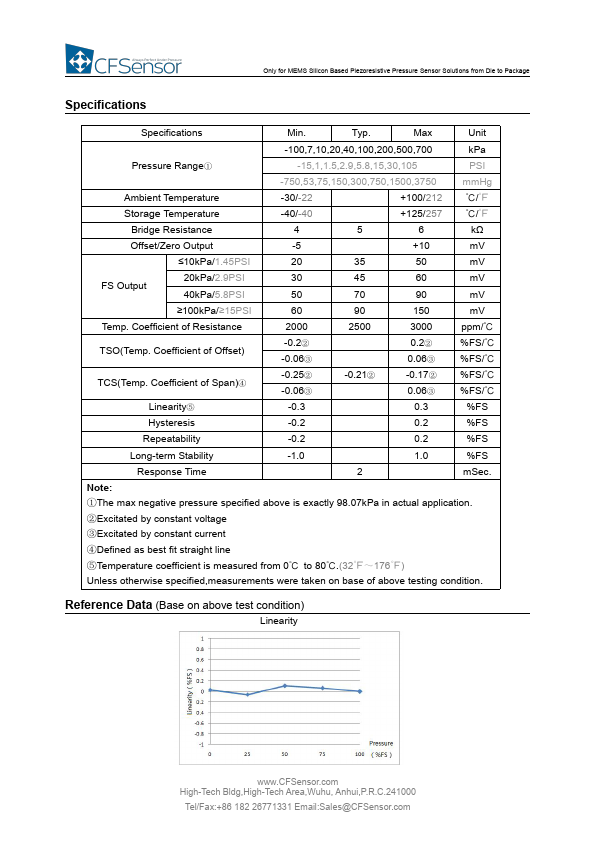

Additional preview pages of the XGZP6847 datasheet.

📁 Similar Datasheet

Other Datasheets by CFSensor

XGZP6847A - Pressure Sensor Module
XGZP6847D - Calibrated Pressure Sensor
XGZP6841A - Calibrated Pressure Sensor
XGZP6806D - BAROMETRIC PRESSURE SENSOR
XGZP6810D - Calibrated Pressure Sensor
XGZP6816D - Calibrated Pressure Sensor
XGZP6818A - Calibrated Pressure Sensor
XGZP6828D - Calibrated Pressure Sensor

Full PDF Text Transcription

Click to expand full text

Only for MEMS Silicon Based Piezoresistive Pressure Sensor Solutions from Die to Package XGZP Pressure Sensor(DIP6) Features ■ Ranges: -100～7kPaG…700kPaG(-15～1PSI…105PSIG) ■ MEMS Technology,Solid-state reliability ■ Low cost for high volume application ■ Dual-In-Line(DIP 6 Pins) ■ For non-corrosive gas or air ■ Working temp.: -30℃～+100℃(-22℉～+212℉) ■ Pressurize from back side of the chip ■ Easy to use and embed in OEM equipment Application ■ For Medical field, such as digital blooding pressure meter,breathing machine,oxygen generating equipment,monitor etc, medical instruments and device. ■ For Consumer&Automotive electronics field, such as tire pressure gauge,MAP sensor etc.
