XGZP6859D - Calibrated Pressure Sensor

Datasheet Summary

Features

  • Wide Ranges: -100kPa…0kPa…1000kPa(show in Pressure Range Example).
  • 2.7V～5.5V Power Supply.
  • Gauge Pressure Type(Positive&Vacuum).
  • For Non-corrosive Gas or Air.
  • Calibrated Digital Signal(I2C Interface)(Refer to XGZP6859A for Analog signal).
  • Temp. Compensated: 0℃～+60℃(32℉～+140℉).
  • Temperature Measurable.
  • Affordable Cost, Easy-to-use √RoHS.

📥 Download Datasheet

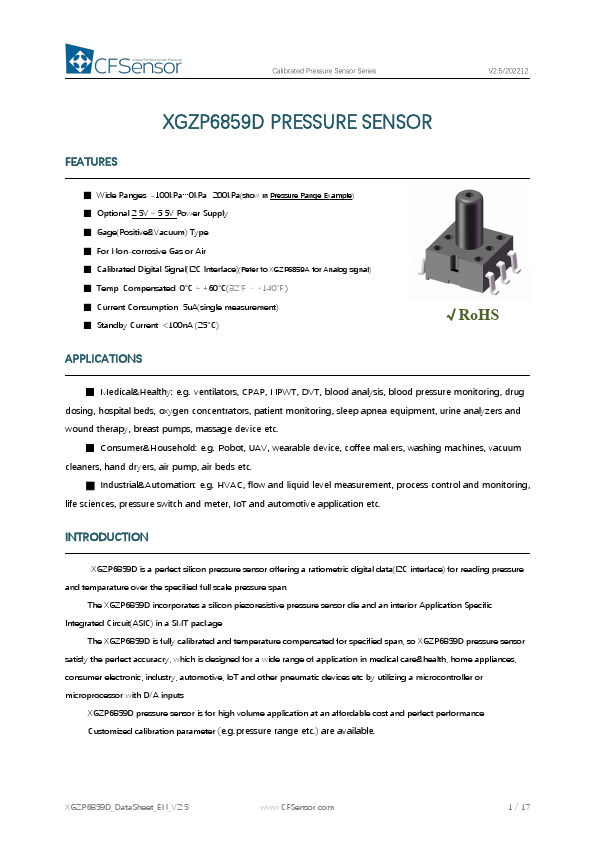

Datasheet preview – XGZP6859D

Datasheet Details

Part number XGZP6859D
Manufacturer CFSensor
File Size 923.22 KB
Description Calibrated Pressure Sensor
Datasheet download datasheet XGZP6859D Datasheet

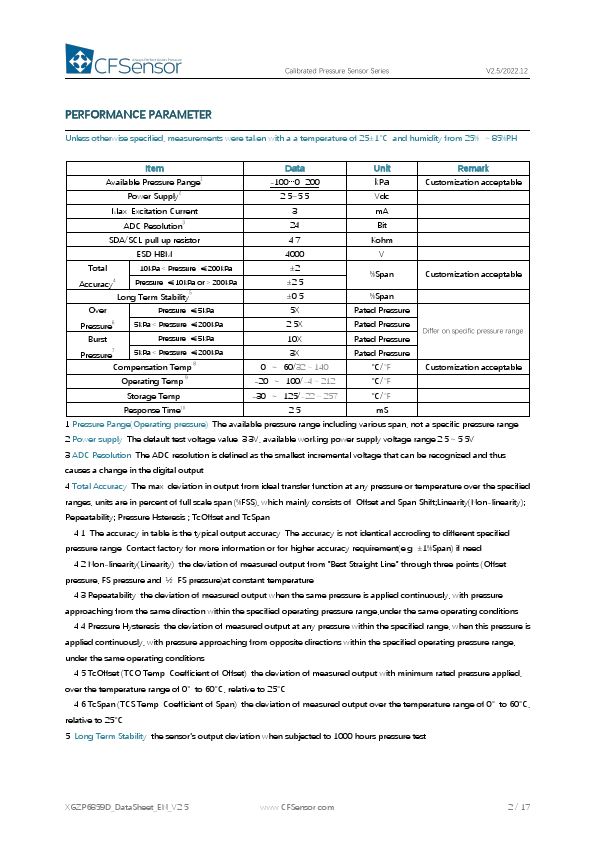

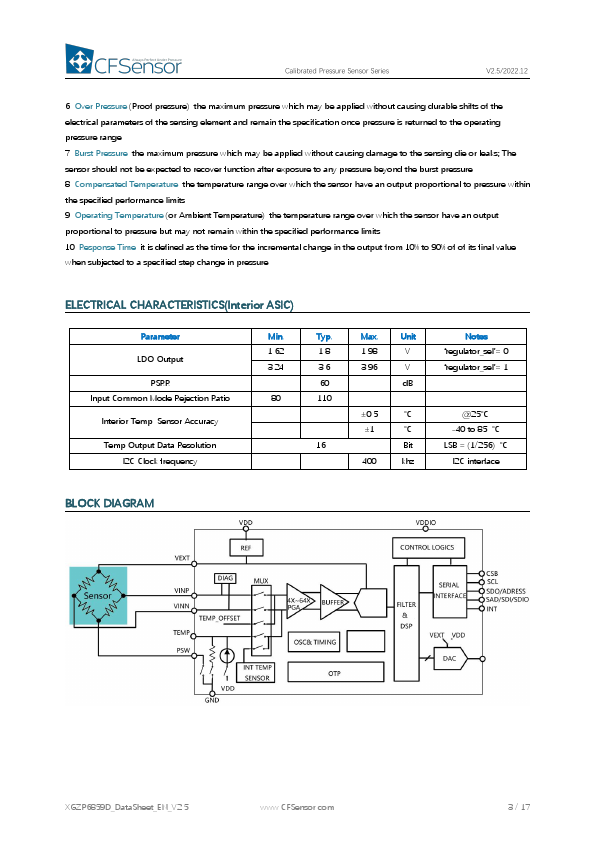

Additional preview pages of the XGZP6859D datasheet.

📁 Similar Datasheet

Other Datasheets by CFSensor

Full PDF Text Transcription

Click to expand full text
Calibrated Pressure Sensor Series V3.0/20250812 XGZP6859D PRESSURE SENSOR FEATURES ■ Wide Ranges: -100kPa…0kPa…1000kPa(show in Pressure Range Example) ■ 2.7V～5.5V Power Supply ■ Gauge Pressure Type(Positive&Vacuum) ■ For Non-corrosive Gas or Air ■ Calibrated Digital Signal(I2C Interface)(Refer to XGZP6859A for Analog signal) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Temperature Measurable ■ Affordable Cost, Easy-to-use √RoHS APPLICATIONS ■ Medical&Healthcare ■ Industrial&Automation ■ Domestic Appliance ■ Consumer Electronic ■ Automotive Electronic INTRODUCTION XGZP6859D is a prefect silicon pressure sensor offering a ratiometric digital data(I2C interface) for reading relative pressure over the specified full scale pressure span.
