XGZP6897D - Calibrated Pressure Sensor

📥 Download Datasheet

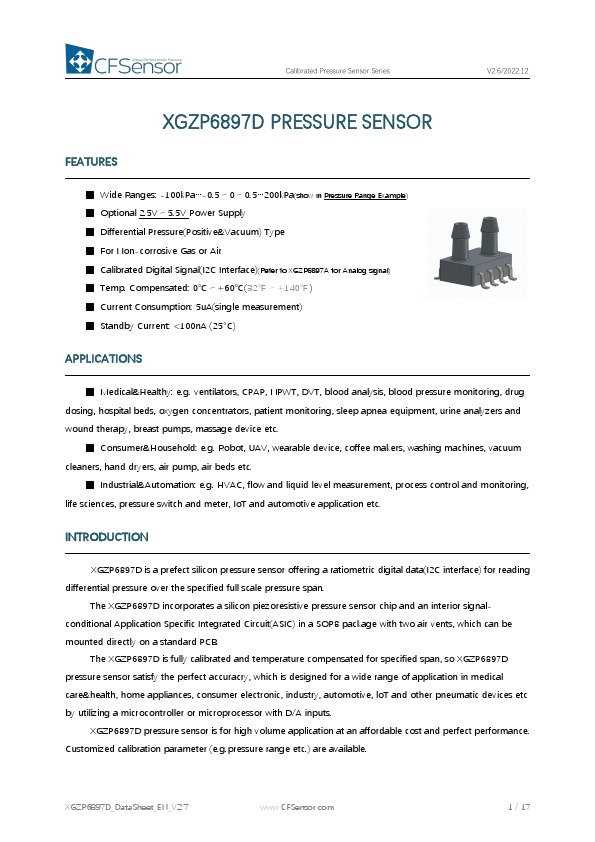

XGZP6897D Datasheet Preview — Preview of XGZP6897D PDF

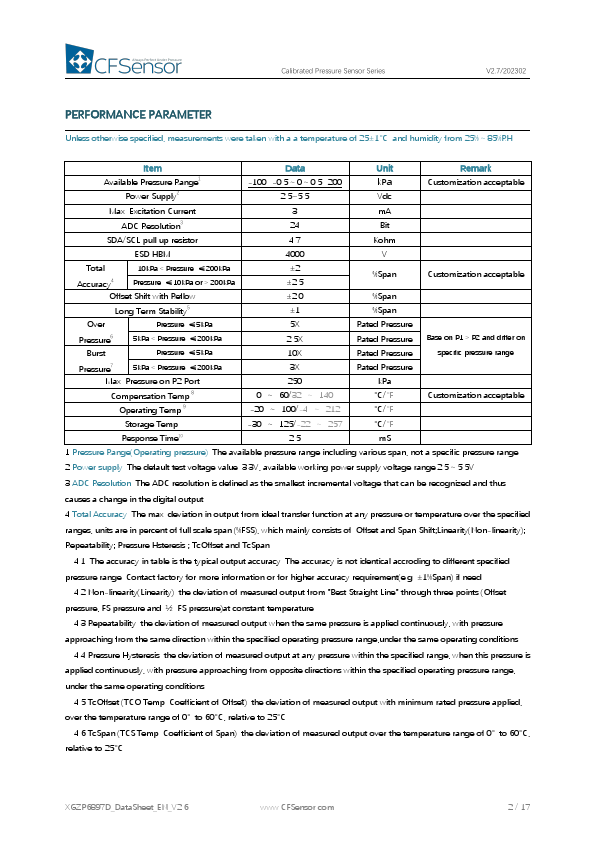

datasheet Preview Page 2

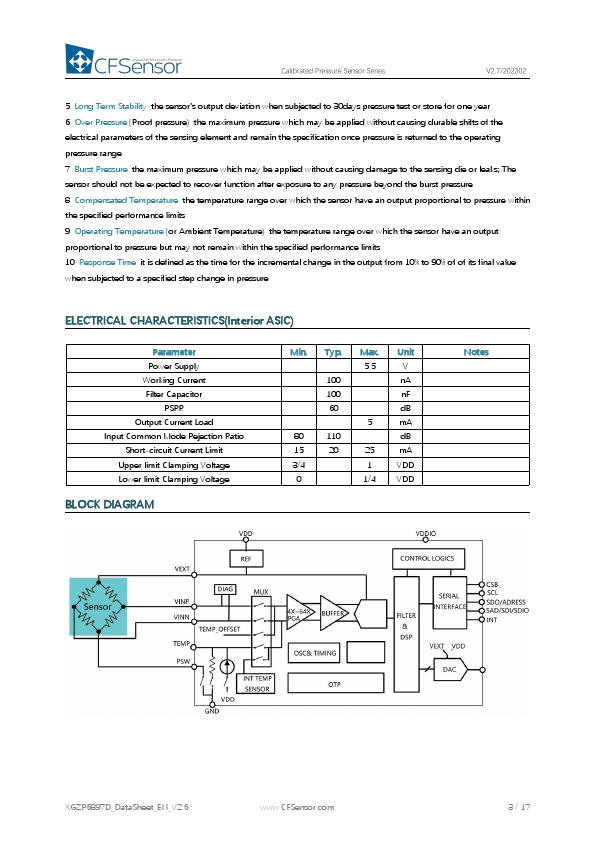

datasheet Preview Page 3

Datasheet Details

Part number	XGZP6897D
Manufacturer	CFSensor
File Size	1.19 MB
Description	Calibrated Pressure Sensor
Datasheet	XGZP6897D-CFSensor.pdf

XGZP6897D Product details

Features

Wide Ranges: -100kPa…-0.5～0～0.5…200kPa(show in Pressure Range Example).
Optional 2.5V～5.5V Power Supply.
Differential Pressure(Positive&Vacuum) Type.
For Non-corrosive Gas or Air.
Calibrated Digital Signal(I2C Interface)(Refer to XGZP6897A for Analog signal).
Temp. Compensated: 0℃～+60℃(32℉～+140℉).
Current Consumption: 5uA(single measurement).
Standby Current:.
