MBR130, MBR120 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

The MBR130 by CHANGZHOU ZHIDE is a SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	MBR130, MBR120
Manufacturer	CHANGZHOU ZHIDE
File Size	29.78 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR120-CHANGZHOUZHIDE.pdf
Note	This datasheet PDF includes multiple part numbers: MBR130, MBR120. Please refer to the document for exact specifications by model.

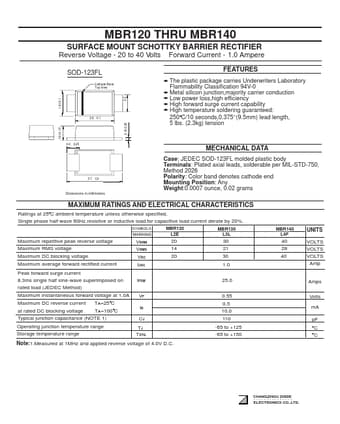

Additional preview pages of the MBR130 datasheet.

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction,majority carrier conduction Low power loss,high efficiency High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 0.10-0.30 0.2 1.8± 0.1 1.3± 0.15 0.6 0.25 3.7 0.2 Dimensions in millimeters.
