MBR130LSFT1G, Surface Mount Schottky Power Rectifier

Schottky Power Rectifier, Surface Mount 1.0 A, 30 V, SOD *123 Package MBR130LSFT1G, SNRVB130LSFT1G This device uses the Schottky Barrier princi.

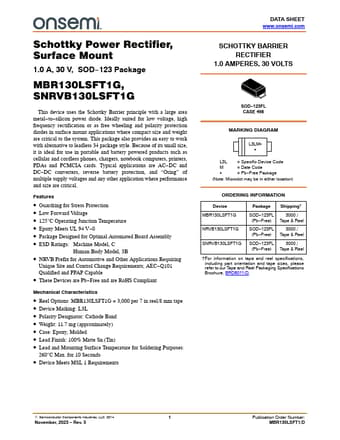

datasheet Preview Page 1 from Datasheet4u.com

MBR130LSFT1G-ONSemiconductor.pdf

MBR130LSFT1G Datasheet Preview — Preview of MBR130LSFT1G PDF

Datasheet Details

Part number:

MBR130LSFT1G

Manufacturer:

ON Semiconductor ↗

File Size:

176.57 KB

Description:

Surface Mount Schottky Power Rectifier

Features

* Guardring for Stress Protection
* Low Forward Voltage
* 125°C Operating Junction Temperature
* Epoxy Meets UL 94 V
* Package Designed for Optimal Automated Board Assembly
* ESD Ratings: Machine Model, C Human Body Model, 3B
* NRVB P

Applications

* where compact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 package style. Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook compute
