MBR130T1 Datasheet - ON Semiconductor

MBR130T1 (MBR130T1 / MBR130T3) Surface Mount Schottky Power Rectifier

www.DataSheet4U.com MBR130T1, MBR130T3 Surface Mount Schottky Power Rectifier Plastic SOD 123 Package This device uses the Schottky Barrier principle with a large area metal to silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 pa.

MBR130T1 Features

* http://onsemi.com

* SCHOTTKY BARRIER RECTIFIER 1.0 AMPERES 30 VOLTS Guardring for Stress Protection Low Forward Voltage 125°C Operating Junction Temperature Epoxy Meets UL 94 V

* 0 @ 0.125 in Package Designed for Optimal Au

MBR130T1_ONSemiconductor.pdf

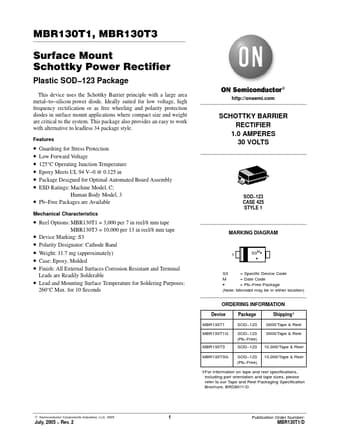

Preview of MBR130T1 PDF
MBR130T1 Datasheet Preview Page 2 MBR130T1 Datasheet Preview Page 3

Datasheet Details

Part number:

MBR130T1

Manufacturer:

ON Semiconductor ↗

File Size:

81.64 KB

Description:

(mbr130t1 / mbr130t3) surface mount schottky power rectifier.
