MBR120 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

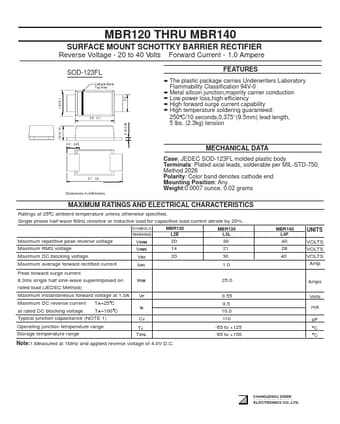

📥 Download Datasheet Datasheet Preview Page 1

Description

MBR120 THRU MBR140 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 40 Volts Forward Current - 1.0 Ampere SOD-123FL Cathode Band Top .

📥 Download Datasheet

Preview of MBR120 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
MBR120
Manufacturer
CHANGZHOU ZHIDE
File Size
29.78 KB
Datasheet
MBR120-CHANGZHOUZHIDE.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction,majority carrier conduction Low power loss,high efficiency High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3
