STPA200 - (STPA62 - STPA270) SOLID STATE TELECOMMUNICATION PROTECTION ARRESTOR

This page provides the datasheet information for the STPA200, a member of the STPA150 (STPA62 - STPA270) SOLID STATE TELECOMMUNICATION PROTECTION ARRESTOR family.

Datasheet Summary

Features

  • Bidirectional Crowbar Protection.
  • Breakdown Voltage Range 62~270V.
  • Holding Current IH=150MA.
  • Peak Pulse Current IPP=50A (10/700μs).
  • Fast Response Time DO-15 1.0(25.4) MIN. .300(7.6) .230(5.8) .034(0.9) .028(0.7) DIA. .140(3.6) .104(2.6) 1.0(25.4) MIN. DIA.

📥 Download Datasheet

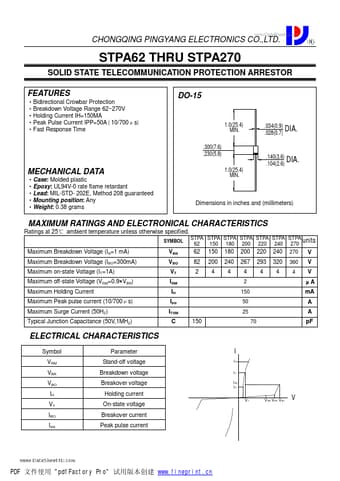

Datasheet preview – STPA200
