STPA003

4 x 52 W quad bridge power amplifier

STPA003 Features

* High output power capability:

* 4 x 52 W/4 Ω max.

* 4 x 30 W/4 Ω @ 14.4 V, 1 kHz, 10 %

* 4 x 85 W/2 Ω max.

* 4 x 55 W/2 Ω @ 14.4V, 1 kHz, 10 %

* MOSFET output power stage

* Capable to operate in low voltage conditions (e.g.: “Start - Stop”)

* Excelle

STPA003 General Description

The STPA003 is a MOSFET class AB audio power amplifier, designed for high-power car radio. In addition to the outstanding output current capability and distortion performance, the STPA003 is extremely robust against several kinds of fortuitous misconnection. It is compliant to the most recent OEM sp.

STPA003 Datasheet (372.71 KB)

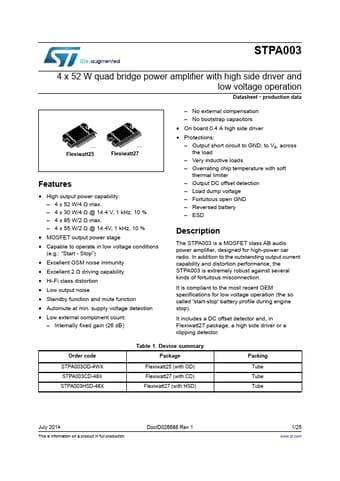

Preview of STPA003 PDF

Datasheet Details

Part number:

STPA003

Manufacturer:

STMicroelectronics ↗

File Size:

372.71 KB

Description:

4 x 52 w quad bridge power amplifier.
STPA003 4 x 52 W quad bridge power amplifier with high side driver and low voltage operation Datasheet - production data '!0'03 Flexiwatt25 '!.
