STP03D200 Datasheet - STMicroelectronics

2kV NPN Darlington transistor

STP03D200 General Description

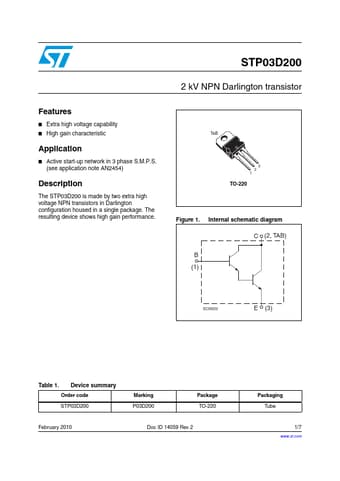

The STP03D200 is made by two extra high voltage NPN transistors in Darlington configuration housed in a single package. The resulting device shows high gain performance. TAB 3 2 1 TO-220 Figure 1. Internal schematic diagram C (2, TAB) B (1) SC09020 E (3) Table 1. Device summary Order code STP03D.

STP03D200 Datasheet (129.07 KB)

Preview of STP03D200 PDF

Datasheet Details

Part number:

STP03D200

Manufacturer:

STMicroelectronics ↗

File Size:

129.07 KB

Description:

2kv npn darlington transistor.
