STP04CM596

4-Bit constant current

STP04CM596 Features

* 4 constant current output channels Adjustable output current through one external resistor Serial data IN/parallel data OUT Serial OUT change state on the failing edges of clock Four outputs current: 80-500mA 25MHz clock frequency Available in high thermal

STP04CM596 General Description

The STP04CM596 is a high-power LED Driver and 4-bit shift register designed for PowerLED applications. The STP04CM596 contains a 4-bit serial IN, parallel OUT shift register that feeds a 4-bit Dtype storage register. In the output stage, four regulated current sources were designed to provide 80-500.

STP04CM596 Datasheet (531.67 KB)

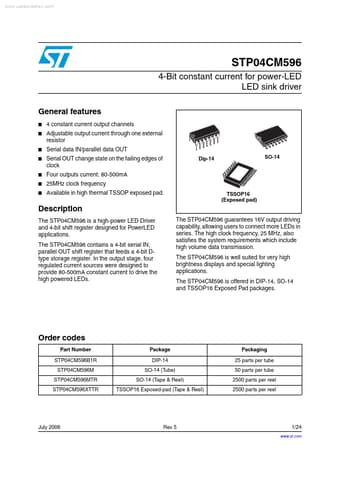

Preview of STP04CM596 PDF

Datasheet Details

Part number:

STP04CM596

Manufacturer:

STMicroelectronics ↗

File Size:

531.67 KB

Description:

4-bit constant current.
