STP04CM05

4-bit constant current power-LED sink driver

STP04CM05 Features

* 4 constant current output channels Adjustable output current through one external resistor Can be driven by a 3.3 V microcontroller IN/parallel data OUT Dip-14 SO-14

* Serial data www.DataSheet4U.com

* Output current: 80-400 mA 2

STP04CM05 General Description

The STP04CM05 is a high-power LED driver and 4-bit shift register designed for Power-LED applications. The STP04CM05 contains a 4-bit serial IN, parallel OUT shift register that feeds a 4-bit D-type storage register. In the output stage, four regulated current sources were designed to provide 80-400.

STP04CM05 Datasheet (730.42 KB)

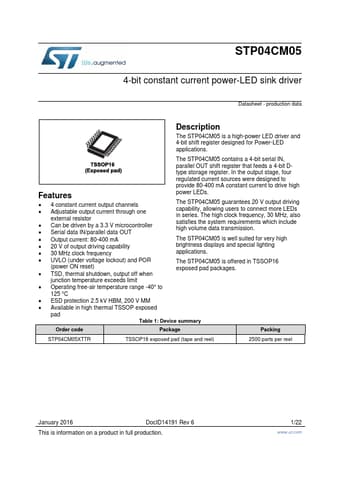

Preview of STP04CM05 PDF

Datasheet Details

Part number:

STP04CM05

Manufacturer:

STMicroelectronics ↗

File Size:

730.42 KB

Description:

4-bit constant current power-led sink driver.
