STP08DP05

Low voltage 8-Bit constant current Led sink

STP08DP05 Features

* Low voltage power supply down to 3V www.DataSheet4U.com

* 8 constant current output channels

* Adjustable output current through external resistor Short and open output error detection Serial Data IN/Parallel data OUT 3.3V micro driver-able Ou

STP08DP05 General Description

The STP08DP05 is a monolithic, low voltage, low current power 8-bit shift register designed for LED panel displays. The STP08DP05 contains a 8-bit serial-in, parallel-out shift register that feeds a 8bitD-type storage register. In the output stage, eight regulated current sources were designed to pr.

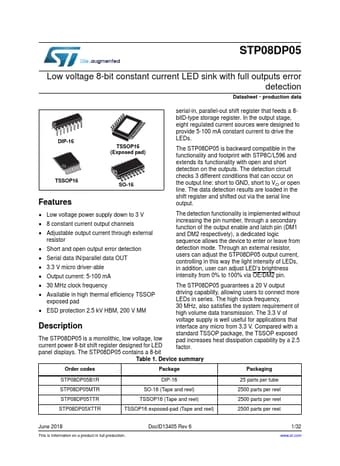

STP08DP05 Datasheet (403.70 KB)

Preview of STP08DP05 PDF

Datasheet Details

Part number:

STP08DP05

Manufacturer:

STMicroelectronics ↗

File Size:

403.70 KB

Description:

Low voltage 8-bit constant current led sink.
