STP08C596 - 8-BIT CONSTANT CURRENT LED SINK DRIVER

Datasheet Summary

Description

The STP08C596 is a monolithic, medium-voltage, low current power 8-bit shift register designed for LED panel display.

The STP08C596 contains a 8-bit serial-in, parallel-out shift register that feeds a 8-bitD-type storage register.

📥 Download Datasheet

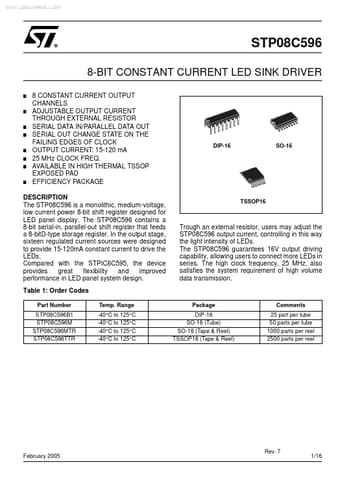

Datasheet preview – STP08C596

Datasheet Details

Part number STP08C596
Manufacturer STMicroelectronics
File Size 574.73 KB
Description 8-BIT CONSTANT CURRENT LED SINK DRIVER
Datasheet download datasheet STP08C596 Datasheet
Additional preview pages of the STP08C596 datasheet.

📁 Similar Datasheet

  • STP08CP05 - low current power 8-bit shift register (STMicroelectronics)
  • STP08DP05 - Low voltage 8-Bit constant current Led sink (STMicroelectronics)
  • STP03D200 - 2kV NPN Darlington transistor (STMicroelectronics)
  • STP04CM05 - 4-bit constant current power-LED sink driver (STMicroelectronics)
  • STP06N20 - N-Channel MOSFET (SamHop Microelectronics)
  • STP-42D3018 - 2-Phase Step Motor (Interinar)
  • STP100N10F7 - N-channel Power MOSFET (STMicroelectronics)
  • STP100N10F7 - TO-220C N-Channel MOSFET (INCHANGE)
  • STP100N10F7 - TO-220 N-Channel MOSFET (INCHANGE)
  • STP100N6F7 - N-CHANNEL POWER MOSFET (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com STP08C596 8-BIT CONSTANT CURRENT LED SINK DRIVER I I I I I I I I 8 CONSTANT CURRENT OUTPUT CHANNELS ADJUSTABLE OUTPUT CURRENT THROUGH EXTERNAL RESISTOR SERIAL DATA IN/PARALLEL DATA OUT SERIAL OUT CHANGE STATE ON THE FAILING EDGES OF CLOCK OUTPUT CURRENT: 15-120 mA 25 MHz CLOCK FREQ. AVAILABLE IN HIGH THERMAL TSSOP EXPOSED PAD EFFICIENCY PACKAGE DIP-16 SO-16 DESCRIPTION The STP08C596 is a monolithic, medium-voltage, low current power 8-bit shift register designed for LED panel display. The STP08C596 contains a 8-bit serial-in, parallel-out shift register that feeds a 8-bitD-type storage register. In the output stage, sixteen regulated current sources were designed to provide 15-120mA constant current to drive the LEDs.
