STPAC01F1

RF DETECTOR FOR POWER AMPLIFIER CONTROL

STPAC01F1 General Description

The STPAC01 is an integrated RF detector for the power control stage. It converts RF signal coming from the coupler into a DC signal usable by the digital stage. It is based on the use of two similar diodes, one providing the signal detection while the second one is used to provide a temperature inf.

STPAC01F1 Datasheet (87.16 KB)

Preview of STPAC01F1 PDF

Datasheet Details

Part number:

STPAC01F1

Manufacturer:

STMicroelectronics ↗

File Size:

87.16 KB

Description:

Rf detector for power amplifier control.

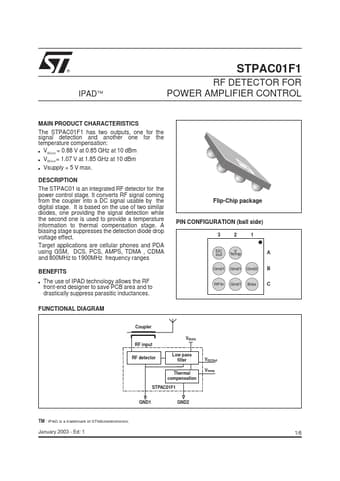

® STPAC01F1 IPADTM RF DETECTOR FOR POWER AMPLIFIER CONTROL MAIN PRODUCT CHARACTERISTICS The STPAC01F1 has two outputs, one for the signal detection.
