STPA002

4 x 52 W quad bridge power amplifier

STPA002 Features

* High output power capability:

* 4 x 52 W/4 Ω max.

* 4 x 30 W/4 Ω @ 14.4 V, 1 kHz, 10 %

* 4 x 85 W/2 Ω max.

* 4 x 55 W/2 Ω @ 14.4V, 1 kHz, 10 %

* MOSFET output power stage

* Stop-start and hybrid engines compliant

* Excellent 2  driving capability

STPA002 General Description

The STPA002 is a MOSFET class AB audio power amplifier, designed for high-power car radio. In addition to the outstanding output current capability and distortion performance, the STPA002 is extremely robust against several kinds of fortuitous misconnections. It is compliant to the most recent OEM s.

STPA002 Datasheet (387.85 KB)

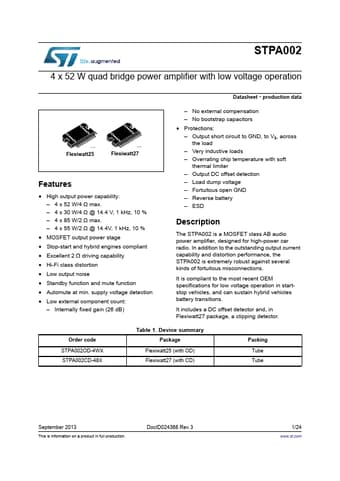

Preview of STPA002 PDF

Datasheet Details

Part number:

STPA002

Manufacturer:

STMicroelectronics ↗

File Size:

387.85 KB

Description:

4 x 52 w quad bridge power amplifier.
STPA002 4 x 52 W quad bridge power amplifier with low voltage operation Datasheet - production data '!0'03 Flexiwatt25 '!0'03 Flexiwatt2.
