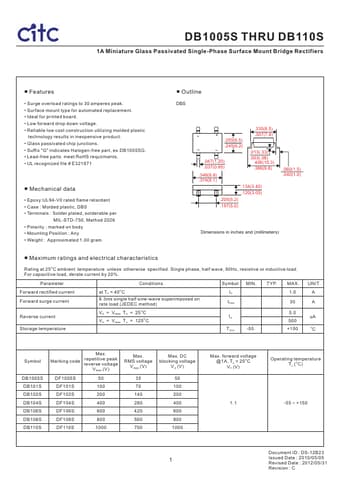

DB1005S Datasheet, Rectifiers, CITC

DB1005S Features

• Rectifiers
• Surge overload ratings to 30 amperes peak.
• Surface mount type for automated replacement.
• Ideal for printed board.
• Low forward drop down voltage.

PDF File Details

Part number:

DB1005S

Manufacturer:

CITC

File Size:

139.51kb

Download:

📄 Datasheet

Description:

1a miniature glass passivated single-phase surface mount bridge rectifiers.
