MMBT3904W - 200mA General Purpose NPN Epitaxial Planar Transistor

CITC

MMBT3904W Description

MMBT3904W 200mA General Purpose NPN Epitaxial Planar Transistor * .

MMBT3904W Features

* High collector-emitterbreakdien voltage. (BVCEO = 40V@IC=1mA).

MMBT3904W Applications

* at collector current.
* Capable of 150mW power dissipation.
* Suffix "G" indicates Halogen-free part, ex. MMBT3904WG.
* Lead-free parts for green partner, exceeds environmental standards of MIL-STD-19500 /228
* Mechanical data
* Epoxy:UL94-V0 rated flame retardant

📥 Download Datasheet

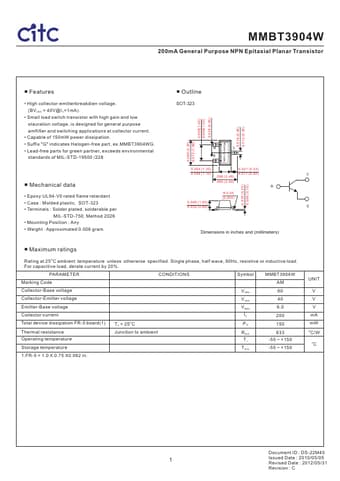

MMBT3904W Datasheet Preview — Preview of MMBT3904W PDF

Datasheet Details

Part number: MMBT3904W
Manufacturer: CITC
File Size: 214.47 KB
Datasheet: MMBT3904W-CITC.pdf
Description: 200mA General Purpose NPN Epitaxial Planar Transistor
