SBF3040PT - 30A High Power Schottky Barrier Rectifiers

Name: SBF3040PT
SKU: SBF3040PT-1254164

CITC

The SBF3040PT by CITC is a 30A High Power Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SBF3040PT
Manufacturer	CITC
File Size	146.42 KB
Description	30A High Power Schottky Barrier Rectifiers
Datasheet	SBF3040PT-CITC.pdf

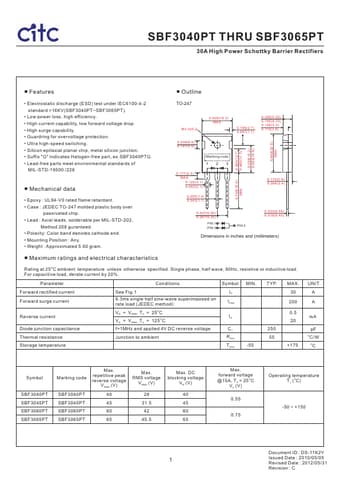

Additional preview pages of the SBF3040PT datasheet.

s.
Outline.
Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(SBF3040PT~SBF3065PT).
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. SBF3040PTG.
Lead-free parts mee.
