SBF3045PT, SBF3040PT - 30A High Power Schottky Barrier Rectifiers

Name: SBF3045PT
SKU: SBF3045PT-1254165

CITC

The SBF3045PT by CITC is a 30A High Power Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SBF3045PT, SBF3040PT
Manufacturer	CITC
File Size	146.42 KB
Description	30A High Power Schottky Barrier Rectifiers
Datasheet	SBF3040PT-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: SBF3045PT, SBF3040PT. Please refer to the document for exact specifications by model.

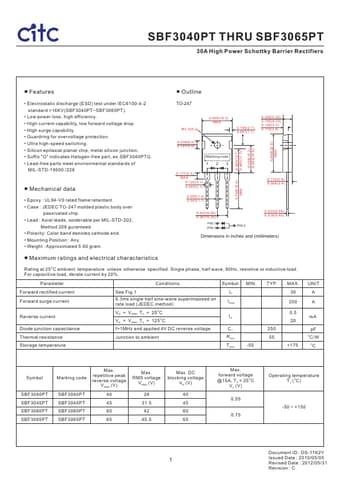

Additional preview pages of the SBF3045PT datasheet.

s.
Outline.
Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(SBF3040PT~SBF3065PT).
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. SBF3040PTG.
Lead-free parts mee.
