📥 Download Datasheet
This datasheet PDF includes multiple part numbers: SR26, SR22. Please refer to the document for exact specifications by model.
Datasheet Details
- Part number
- SR26, SR22
- Manufacturer
- CITC
- File Size
- 136.86 KB
- Datasheet
-

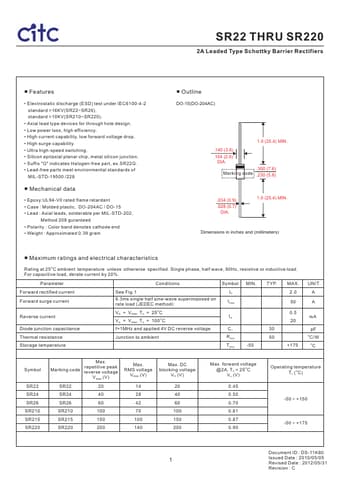

SR22-CITC.pdf
- Description
-
2A Leaded Type Schottky Barrier Rectifiers
- Note
- This datasheet PDF includes multiple part numbers: SR26, SR22.
Please refer to the document for exact specifications by model.
SR26 Product details
Features
- s.
- Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(SR22~SR26). standard >10ΚV(SR210~SR220).
- Axial lead type devices for through hole design.
- Low power loss, high efficiency.
- High current capability, low forward voltage drop.
- High surge capability.
- Ultra high-speed switching.
- Silicon epitaxial planar chip, metal silicon junction.
- Suffix "G" indicates Halogen-free part, ex. SR22G.
- Lead-free.
