SR210, SR22 - 2A Leaded Type Schottky Barrier Rectifiers

CITC

📥 Download Datasheet

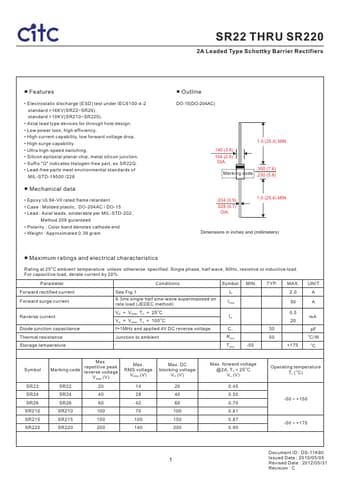

SR210 Datasheet Preview — This datasheet PDF includes multiple part numbers: SR210, SR22. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SR210, SR22
Manufacturer: CITC
File Size: 136.86 KB
Datasheet: SR22-CITC.pdf
Description: 2A Leaded Type Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SR210, SR22.
Please refer to the document for exact specifications by model.

SR210 Product details

Features

s.
Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(SR22~SR26). standard >10ΚV(SR210~SR220).
Axial lead type devices for through hole design.
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. SR22G.
Lead-free.
