CMT2251AW - 300 - 480MHz OOK Receiver

Name: CMT2251AW
SKU: CMT2251AW-968351

CMOSTEK

📥 Download Datasheet

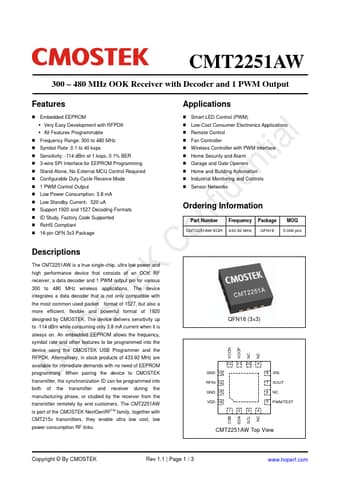

CMT2251AW Datasheet Preview — Preview of CMT2251AW PDF

Datasheet Details

Part number	CMT2251AW
Manufacturer	CMOSTEK
File Size	274.56 KB
Description	300 - 480MHz OOK Receiver
Datasheet	CMT2251AW-CMOSTEK.pdf

CMT2251AW Product details

Description

The CMT2251AW is a true single-chip, ultra low power and high performance device that consists of an OOK RF receiver, a data decoder and 1 PWM output pin for various 300 to 480 MHz wireless applications.

Features

Embedded EEPROM.
Very Easy Development with RFPDK.
All Features Programmable.
Frequency Range: 300 to 480 MHz.
Symbol Rate: 0.1 to 40 ksps.
Sensitivity: -114 dBm at 1 ksps, 0.1% BER.
3-wire SPI Interface for EEPROM Programming.
Stand-Alone, No External MCU Control Required.
Configurable Duty-Cycle Receive Mode.
1 PWM Control Output.
Low Power Consumption: 3.8 mA.
Low Standby Current：520 uA.
Support 1920 and 1527 Decoding Formats.
