CMT2257AW 300 - 960MHz OOK/(G)FSK Receiver

CMOSTEK

CMT2257AW Description

CMT2257AW CMT2257AW 300 * 960 MHz OOK/(G)FSK Receiver with Decoder .
The CMT2257AW is a true single-chip, ultra low power and high performance device that consists of an OOK/(G)FSK RF receiver, a data decoder and 4 dat.

CMT2257AW Features

* Embedded EEPROM
* Very Easy Development with RFPDK
* All Features Programmable
* 3-wire SPI Interface for EEPROM Programming
* Frequency Range: 300 to 960 MHz
* Symbol Rate: 0.1 to 100 ksps
* Sensitivity: -109 dBm @ 9.6 ksps, FSK, 868.35 MHz
* Stand-Alone, No Extern

CMT2257AW Applications

* The device integrates a data decoder which is compatible with the most common used encoding format of 1527 and 2262, as well as a more flexible format of 1920 designed by CMOSTEK. The device delivers sensitivity up to -109 dBm (FSK, 9.6 ksps symbol rate, 868.35 MHz) while consuming only 5.7 mA curr

📥 Download Datasheet

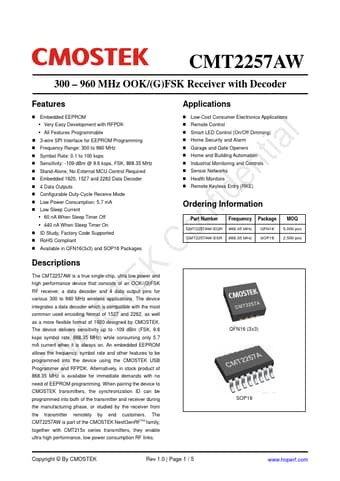

CMT2257AW Datasheet Preview — Preview of CMT2257AW PDF

Datasheet Details

Part number: CMT2257AW
Manufacturer: CMOSTEK
File Size: 164.26 KB
Datasheet: CMT2257AW-CMOSTEK.pdf
Description: 300 - 960MHz OOK/(G)FSK Receiver
