CN3153B 500mA Lithium Battery Charger IC

CN3153B Description

CONSONANCE 500mA Lithium Battery Charger IC CN3153B General .
The CN3153B is a complete constant-current /constant voltage linear charger for single cell lithium rechargeable battery.

CN3153B Features

* include under-voltage lockout, automatic recharge and charging/termination indicator. The CN3153B is available ordinary

CN3153B Applications

* Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The regulation voltage is internally fixed at 4.2V, it can also be adjusted with an external resistor. The charge current can be programmed externally with a single re

📥 Download Datasheet

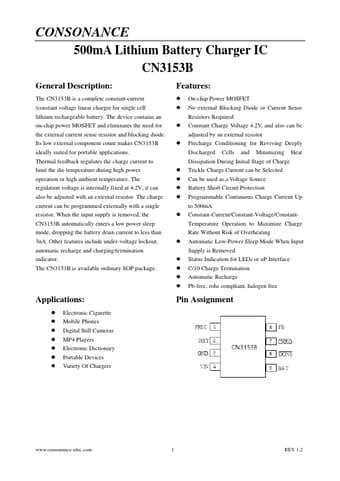

Preview of CN3153B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CN3153B
Manufacturer
CONSONANCE
File Size
219.69 KB
Datasheet
CN3153B-CONSONANCE.pdf
Description
500mA Lithium Battery Charger IC
