CN3153 1A Lithium Battery Charger IC

CN3153 Description

CONSONANCE 1A Lithium Battery Charger IC CN3153 General .
The CN3153 is a complete constant-current /constant voltage linear charger for single cell lithium rechargeable battery.

CN3153 Features

* include under-voltage lockout, automatic recharge and charging/termination indicator. The CN3153 is available in thermally enhan

CN3153 Applications

* Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The regulation voltage is internally fixed at 4.2V, it can also be adjusted with an external resistor. The charge current can be programmed externally with a single re

📥 Download Datasheet

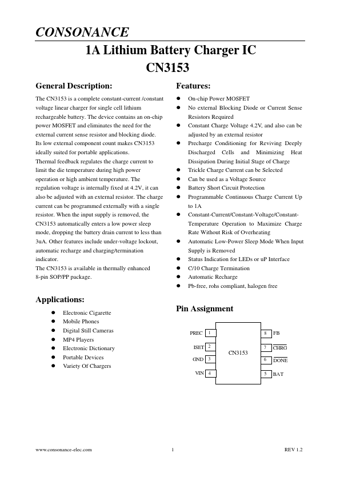

Preview of CN3153 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CN3153
Manufacturer
CONSONANCE
File Size
153.83 KB
Datasheet
CN3153-CONSONANCE.pdf
Description
1A Lithium Battery Charger IC
