CN3162 1A Lithium Battery Charger IC

CN3162 Description

CONSONANCE 1A Lithium Battery Charger IC CN3162 General .
The CN3162 is a complete constant-current /constant voltage linear charger for single cell lithium rechargeable battery.

CN3162 Features

* include under-voltage lockout, automatic recharge, battery temperature sensing and charging/termination indicator. The CN3162 i

CN3162 Applications

* Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The regulation voltage is internally fixed at 4.2V, it can also be adjusted with an external resistor. The charge current can be programmed externally with a single re

📥 Download Datasheet

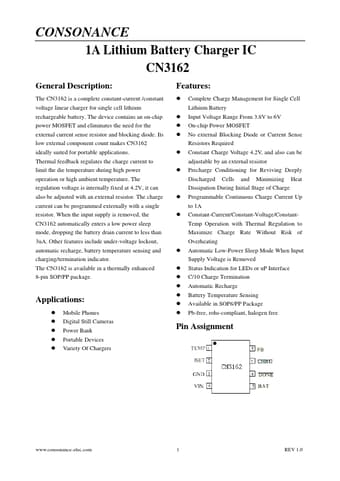

Preview of CN3162 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CN3162
Manufacturer
CONSONANCE
File Size
238.08 KB
Datasheet
CN3162-CONSONANCE.pdf
Description
1A Lithium Battery Charger IC
