CN3152 1A Lithium Battery Charger IC

CN3152 Description

CONSONANCE 1A Lithium Battery Charger IC CN3152 General .
The CN3152 is a complete constant-current /constant voltage linear charger for single cell Li-ion and Li Polymer rechargeable batteries.

CN3152 Features

* include undervoltage lockout, automatic recharge, chip enable function, battery temperature monitoring and charge status indications. The CN3152 is available in a thermall

CN3152 Applications

* Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The regulation voltage is fixed at 4.2V with 1% accuracy. The charge current can be set externally with a single resistor. When the input supply is removed, the CN3152

📥 Download Datasheet

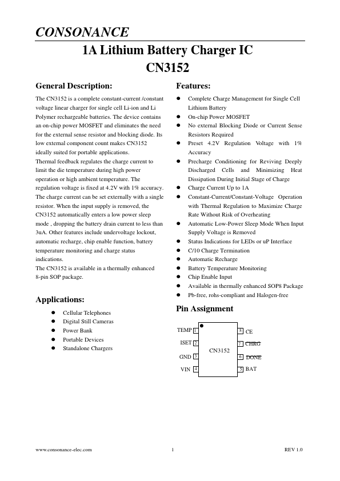

Preview of CN3152 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CN3152
Manufacturer
CONSONANCE
File Size
174.06 KB
Datasheet
CN3152-CONSONANCE.pdf
Description
1A Lithium Battery Charger IC
