CN5815 - Constant Current Boost HB LED Driver

CN5815 Description

CONSONANCE 4.5V to 32V Input, Constant Current Boost HB LED Driver CN5815 General .
The CN5815 is a current mode fixed-frequency PWM controller for high brightness(HB) LED driving applications.

CN5815 Features

* include chip shutdown, over voltage protection, LED dimming, built-in 5V regulator and slope compensation, etc. The CN5815 is available in 10-pin SSOP package. Features:
* Constant Current HB LED Driver
* LED Current Set by an External Resistor
* ±10% LED Curre

CN5815 Applications

* The device operates from an input supply between 4.5V and 32V and provides to drive an external N-channel MOSFET. The CN5815 contains all the necessary building blocks including a bandgap reference, a 330KHz oscillator, current-mode control circuitry, chip shutdown block, softstart block and gate d

📥 Download Datasheet

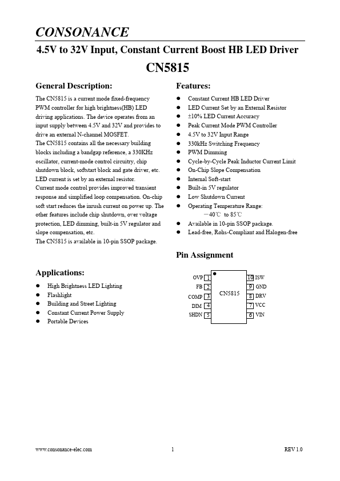

Preview of CN5815 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CN5815
Manufacturer
CONSONANCE
File Size
351.43 KB
Datasheet
CN5815-CONSONANCE.pdf
Description
Constant Current Boost HB LED Driver
