CN5816 Datasheet - CONSONANCE

4.5V to 32V Input High Current LED Driver IC

CN5816 Features

* include chip shutdown, over voltage protection, built-in 5V regulator and slope compensation, etc. The CN5816 is available in 10-pin SSOP package. Applications:

* High Power LED Lighting

CN5816 General Description

The CN5816 is a current mode fixed-frequency PWM controller for high current LED applications. The device operates from an input supply between 4.5V and 32V and provides to drive an external N-channel MOSFET. With the maximum operating input voltage of 32V, the CN5816 is ideal for buck or buck-boos.

CN5816 Datasheet (344.67 KB)

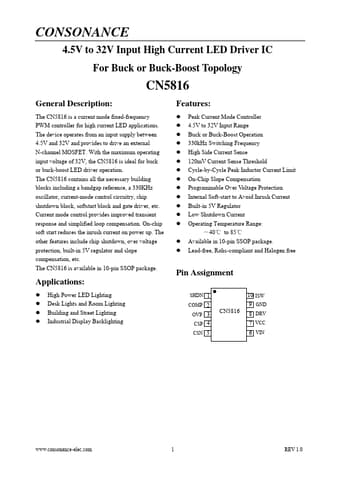

Preview of CN5816 PDF

Datasheet Details

Part number:

CN5816

Manufacturer:

CONSONANCE

File Size:

344.67 KB

Description:

4.5v to 32v input high current led driver ic.
