CBM53D14, CBM53D04 - voltage output DAC

Name: CBM53D14
SKU: CBM53D14-1582516

📥 Download Datasheet

CBM53D14 Datasheet Preview — This datasheet PDF includes multiple part numbers: CBM53D14, CBM53D04. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CBM53D14, CBM53D04
Manufacturer	COREBAI
File Size	1.02 MB
Description	voltage output DAC
Datasheet	CBM53D04-Corebai.pdf
Note	This datasheet PDF includes multiple part numbers: CBM53D14, CBM53D04. Please refer to the document for exact specifications by model.

CBM53D14 Product details

Description

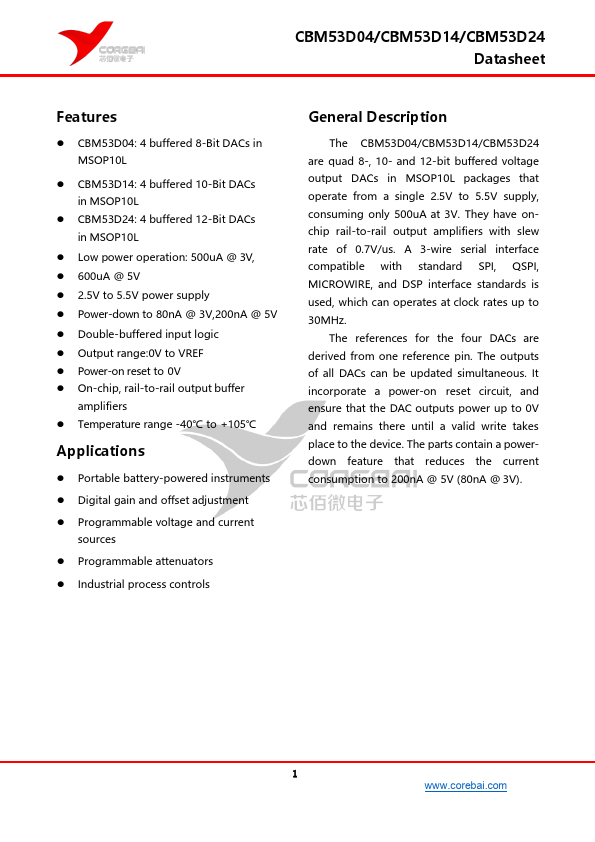

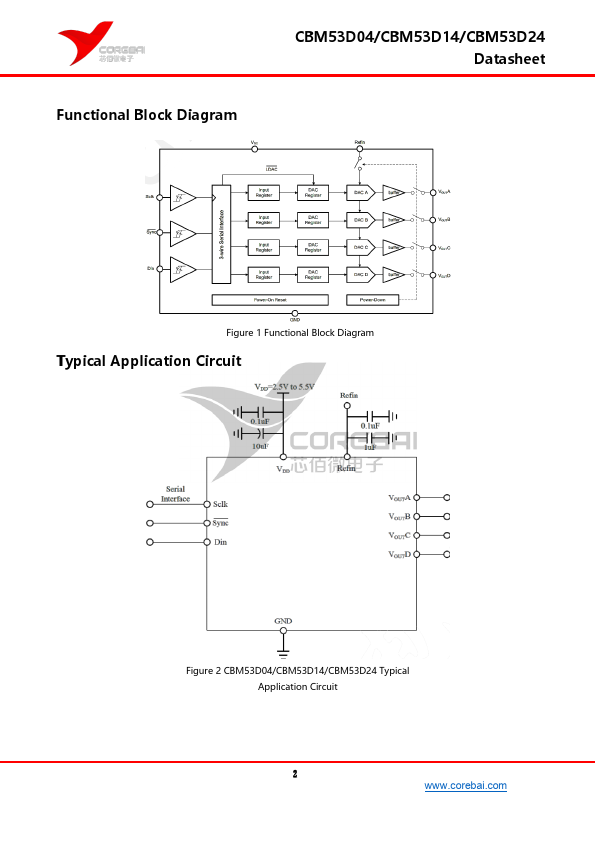

The CBM53D04/CBM53D14/CBM53D24 are quad 8-, 10- and 12-bit buffered voltage output DACs in MSOP10L packages that operate from a single 2.5V to 5.5V supply, consuming only 500uA at 3V.

Features

CBM53D04: 4 buffered 8-Bit DACs in MSOP10L.
CBM53D14: 4 buffered 10-Bit DACs in MSOP10L.
CBM53D24: 4 buffered 12-Bit DACs in MSOP10L.
Low power operation: 500uA @ 3V,.
600uA @ 5V.

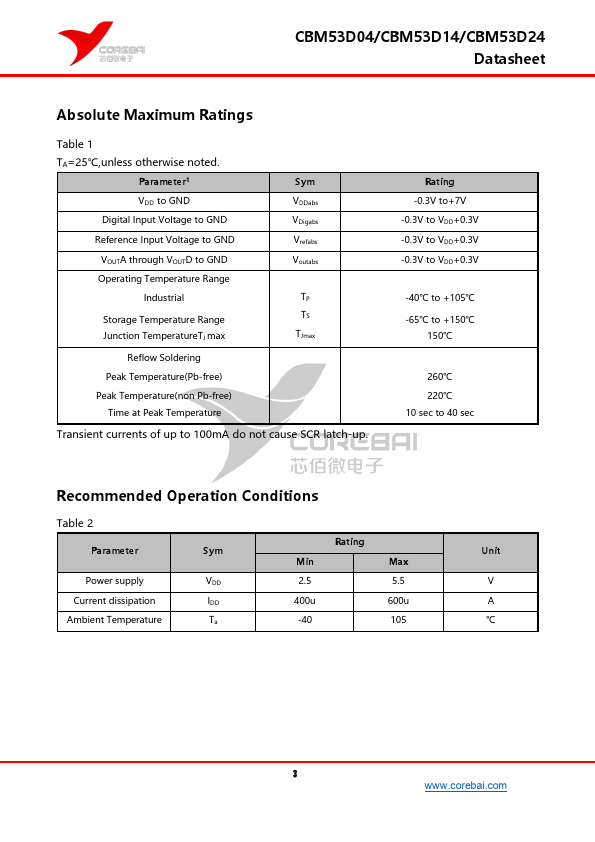

2.5V to 5.5V power supply.
Power-down to 80nA @ 3V,200nA @ 5V.
Double-buffered input logic.
Output range:0V to VREF.
Power-on reset to 0V.
On-chip, rail-to-rail output buffer amplifiers.
Temperature range -40℃ to +105℃.
