KMOC3043H, KMOC3043 Datasheet - COSMO Electronics

KMOC3043H 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

The KMOC3041 、 KMOC3042 、 KMOC3043 series consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use with a TRIAC in the interface of logic systems to equipment powe.

KMOC3043H Features

* 1. Pb free and RoHS compliant. 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals：

* UL Approved (No. E169586): UL1577

* C-UL Approved

KMOC3043_COSMOElectronics.pdf

This datasheet PDF includes multiple part numbers: KMOC3043H, KMOC3043. Please refer to the document for exact specifications by model.

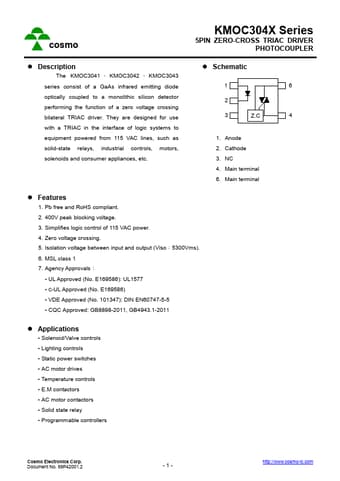

KMOC3043H Datasheet Preview Page 2 KMOC3043H Datasheet Preview Page 3

Datasheet Details

Part number:

KMOC3043H, KMOC3043

Manufacturer:

COSMO Electronics

File Size:

257.94 KB

Description:

5pin zero-cross triac driver photocoupler.

Note:

This datasheet PDF includes multiple part numbers: KMOC3043H, KMOC3043.
Please refer to the document for exact specifications by model.
